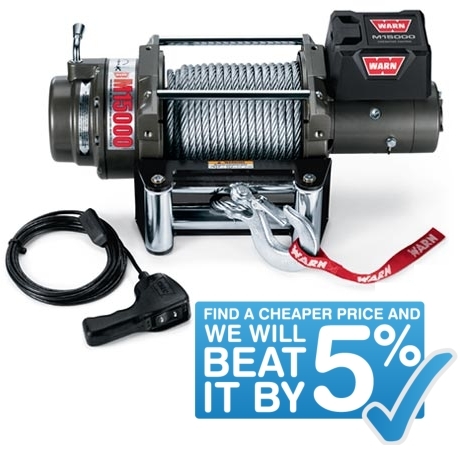

A heavy-duty 15,000 lb. capacity winch with a 4.6hp series wound motor. Direct drive cone braking system. Control pack is designed for clearance and ease of access. Comes with 27M of 7/16" (11mm) wire rope.
·High strength carrier plates are designed to handle heavy gear train stresses
·Series-wound, high-speed motor provides fast line speed and strong pulls
·Brake provides superior control while winching
·Remote-mount control box allows for various mounting options
·Durable 3-stage planetary geartrain for smooth, reliable, operation
·Remote control with 3.7m lead
·Chip-resistant powder-coated finish
·27M of 7/16" (11mm) diameter wire rope
M15000 SPECS/PART NUMBERS
Part number: 47801 (12V)
Part number: 478022 (24V) Contact WARN Customer Service for Availability
Rated Line Pull: 15,000 lbs. (6804 kgs) single-line
Motor: Series Wound, 12V 4.6 hp, 24V 2.5 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12 ft (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 315:1
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic mechanical cone
Drum diameter/Length: 3.5 in /8.2 in (9cm/21cm)
Weight: 136 lbs. (62kgs.)
Wire rope: 90 ft, 7/16 in (27m, 11mm) diameter
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 in (1.83m)
Finish: Argent Gray Powder Coat
12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0
22.2(6.77)
67 amps
1/15000(6804)
2000(910)
7.27(2.22)
135 amps
2/13890(6300)
4000(1810)
5.41(1.65)
185 amps
3/11520(5225)
6000(2720)
4.43(1.35)
235 amps
4/9840(4463)
8000(3630)
3.79(1.16)
285 amps
10000(4540)
3.31(1.01)
335 amps
12000(5440)
2.93(.893)
385 amps
14000(6350)
2.61(.796)
435 amps
15000(6800)
2.48(.756)
460 amps
24V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0
28(8.6)
24 amps
1/15000(6800)
2200(1000)
10.2(3.1)
85 amps
2/13900(6300)
4400(2000)
7.5(2.3)
115 amps
3/11400(5200)
6600(3000)
6.9(2.1)
142 amps
4/9700(4400)
8800(4000)
6.6(2.0)
170 amps
11000(5000)
6.2(1.9)
190 amps
13200(6000)
5.2(1.6)
210 amps
15000(6800)
4.3(1.3)
235 amps
Above performance specs are based on first layer of drum
Winch Dimensions: 25.2" L. x 8.5" D. x 11" H. (640mm L. x 215mm D. x 279mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
