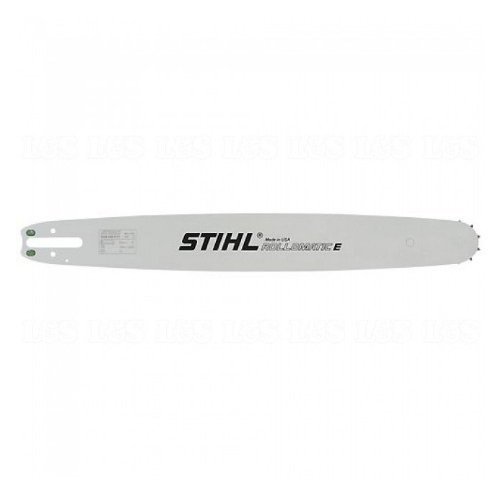

Stihl 20"/50cm Rollomatic E Chainsaw Bar (.325" x .063"/1.6mm) 81 Drive Links
Bar Specifications:
Cutting Length 20" (50cm)
Pitch .325" (8.25mm)
Gauge .063" (1.6mm)
Drive Link Count 81
Nose Sprocket 11 Teeth
Weight (1.05 kg)
Fits the Following Chainsaws with .325" (8.25mm) Pitch Drive Sprockets:
STIHL PETROL POWERED029, 034, 036, 036, 039, MS 290, MS 291, MS 310, MS 311, MS 340, MS 341, MS 360, MS 361, MS 362, MS 380, MS 381, MS 390, MS 391
Bars are made of three steel plates that are electrically welded together. The center plate has been hollowed out to reduce weight. The nose sprocket is sealed to keep dirt and corrosive material out, therefore never needs to be greased. Rails are induction hardened for long life. This bar has relatively small nose radius which helps reduce the incident of kickback (green color coded bar) and reduces weight. See Warning Below.
Made in the USA. Note: Stihl product No's 3003 000 6821 and 3003 008 6821 are interchangable and identical parts. The middle 3 digits ie 008 (Made in USA) or 000 (Made in Germany) only determine the country of manufacturer.
WARNING: The occurrence called "kickback" can cause serious or fatal injury. Always read the instruction manual carefully before using your saw. Stihl uses a green and yellow color-coding system to help you select a powerhead, bar and chain combination that complies with the kickback requirements of Australian Standards—AS 2726.1-2004 Chainsaw Safety Requirements. Ask your Stihl dealer about safe operating procedures and the advantages of the Stihl Quickstop chain brake, Stihl secondary chain braking system, Stihl reduced kickback bars and Stihl low-kickback saw chains. Stihl recommends the use of green reduced kickback bars and green low kickback chains on all Stihl chain saws.
